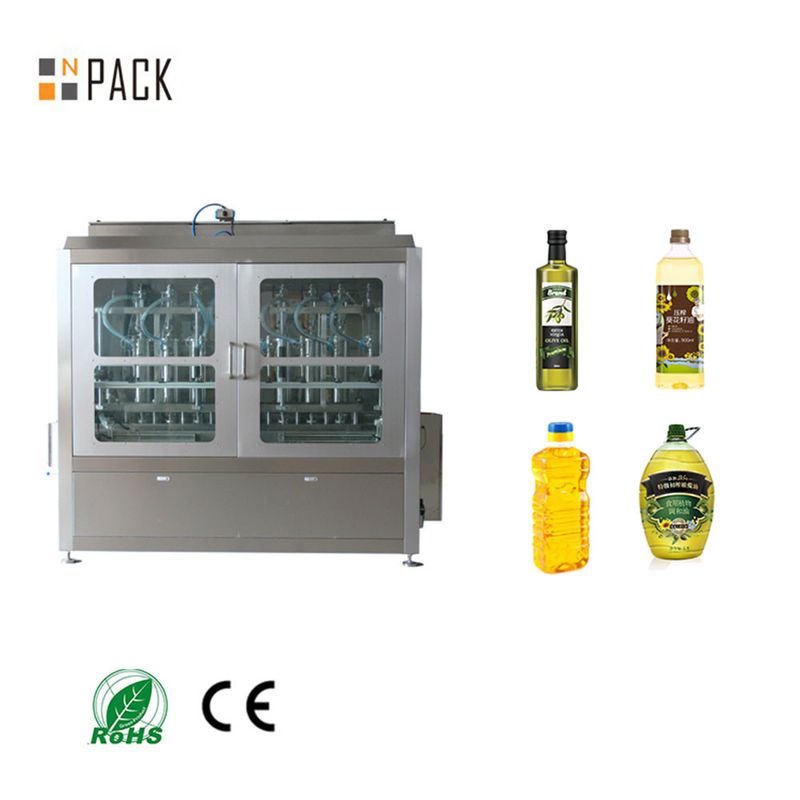

Automatic Olive Oil Filling Machine For Glass Bottle
Npack’s olive oil filling machine is designed for accurate and efficient filling of glass and plastic bottles from 500 ml to 5L. Built with food-grade 304/316 stainless steel, it ensures hygiene, safety, and product quality.
This olive oil filling machine features advanced PLC control, easy operation, and flexible configuration with multiple filling nozzles. It supports both bottle and can filling, with optional capping integration for a complete production line.
Customizable to meet different production needs, Npack’s olive oil filling machine delivers stable performance, high efficiency, and reliable automation for modern olive oil processing.
Main Features
1.Adopt internationally renowned PLC, human-machine interface, servo control system and low-voltage components to ensure excellent quality and long-term stable performance.
2.The adjustment of filling volume can be realized by changing the target filling volume on the touch screen, and the fine adjustment can be achieved by fine-tuning the adjusting device at the lower end of the piston rod.
3.Photoelectric counting and PLC control realize truly no-bottle no-filling.
4.The anti-dripping filling system effectively prevents dripping and wire drawing.
5.The equipment has intelligent detection and independent fault judgment functions.
Main parameter
|
|
|
|
|
|
|
|
NP-VF-16
|
|
|
|
|
|
|
|
|
16
|
|
|
100-500,100-1000,1000-5000
|
Capacity(bpm)base on 500ml
|
12-14
|
24-28
|
36-42
|
48-56
|
60-70
|
70-80
|
80-100
|
|
|
|
|
|
|
|
|
220VAC SINGLE PHASE 1500W
|
220VAC SINGLE PHASE 3000W
|
Olive Oil Filler Machine Working Principle
The Olive Oil Filling Machine for Glass Bottle operates using a precision servo-driven piston system to ensure accurate and stable filling. The servo motor controls the lead screw, driving the piston to move up and down within the cylinder.
During the downward stroke, the three-way valve connects the cylinder to the oil tank, allowing olive oil to be smoothly drawn into the cylinder. During the upward stroke, the valve switches direction, isolating the tank while the piston pushes the measured volume of olive oil through the filling nozzle into glass bottles.
This controlled reciprocating motion guarantees high filling accuracy, minimal waste, and consistent performance, making it ideal for hygienic and efficient olive oil bottling lines.
Main Components
The olive oil filling machine mainly consists of a conveying system, filling system, and control system, ensuring stable and accurate operation.
1. Conveying System
The conveyor uses a motor and frequency control to smoothly transport bottles. Sensors and positioning devices ensure each bottle is accurately aligned with the filling head, making it ideal for precise olive oil filling.
2. Filling System
The olive oil filling machine adopts a servo-driven piston mechanism with a lead screw structure, ensuring high filling accuracy. The piston and three-way valve system controls oil intake and discharge without leakage. The filling head uses a diving filling method to reduce foam and prevent oil overflow, especially suitable for glass bottles.
3. Material Tank System
Equipped with a liquid level control system, the tank automatically monitors and replenishes olive oil, ensuring continuous and stable production.
4. Control System
The olive oil filling machine uses a PLC control system with a touchscreen interface, allowing easy operation, parameter adjustment, and reliable automation.
Overall, this olive oil filling machine offers hygienic design, precise filling, and efficient performance for modern olive oil production lines.
After-Sales Service
1. Installation
Professional technicians are available for on-site installation of the filling machine. The service covers installation, travel, and related expenses.
2. Training
We provide comprehensive training for operators and engineers, either on-site or at our factory, to ensure efficient machine operation.
3. Warranty
The filling machine comes with a one-year warranty, including reliable maintenance support, spare parts supply, and fast troubleshooting.
4. Consultation Service
Free consultation is available to help you choose the right solution, including customized filling machine layouts and CAD designs.
5. Technical Support
24/7 technical support is provided via email or phone to ensure quick response and continuous production.
6. Spare Parts
A basic spare parts kit is supplied with the machine, and additional high-quality parts are available anytime upon request.
